Pipes, Fittings and Hardware

In addition to reactors, DDPS offers a range of piping in glass-lined steel or solid borosilicate glass construction, giving the optimum properties of mechanical resistance and an excellent resistance to corrosion. Select from straight pipes, elbows, reducers, tees, crosses, flanges, and other components to create pipeline that customized to fit your process.

Glass-Lined Pipe and Pipeline Components

Glass Pipe and Pipeline Components - QVF SUPRA Line


Glass-lined Pipes and Fittings

Glass-Lined Pipe Product Description

glass-lined pipe componentsTo control corrosion, preserve product purity and ensure easy cleaning and smooth flow, De Dietrich glass-lined pipe and fittings provide a "full circle" of protection.

Glass-Lined Pipe Applications

The superior De Dietrich acid/alkali resistant glass coating is suitable for most process materials.

Glass-Lined Pipe Features

De Dietrich glass-lined pipe and fittings are made with the same care and workmanship used on all our equipment.  All pipe and fittings are made from low carbon seamless steel pipe with forged-steel stub ends. Blind flanges and spacers are also of steel construction.  All pipe is made to order.  De Dietrich glass-lined pipes are supplied with loose split flanges. The glass lining covers the inner wall and stub end faces.

Glass-Lined Pipe Advantages

  • Broad range of corrosion resistance
  • Non-permeable lining.  No problem when handling chemicals that can permeate fluoropolymer piping, attacking the steel substrate and contaminating the lining
  • Tough glass lining not subject to "liner collapse due to full vacuum at high temperatures
  • Smooth "non-stick" lining provides a very low coefficient of friction, making it ideal for handling sticky, viscous products that could adhere to other linings
  • Glass-lined steel pipe and fittings will not effect the purity, color or flavor of your product

Glass-Lined Pipe Specifications

  • Diameters from 1 1/2" to 8"
  • Lengths up to 196"
  • Suitable for 150 psig (10 bar) maximum allowable working pressure (MAWP)

Options

  • Sight boxes
  • Jacketed and unjacketed pipe
  • Larger sizes upon request

Request More Information

Back to top


QVF SUPRA-Line

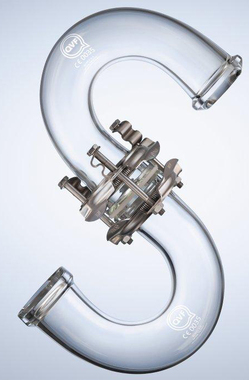

QVF SUPRA-Line Component SystemSupra S

The QVF SUPRA-Line component system reflects the continued evolution of our borosilicate glass range of products.  This latest development results in a complete system of borosilicate glass products that are compatible with both the former KF and WPR systems.

Key Features

  • Better visibility of processes inside the system.
  • Compatibility with existing systems, which allows additions onto systems already in use.
  • Increased Safety – including higher pressure/temperature ratings and engineered flanges and connections.

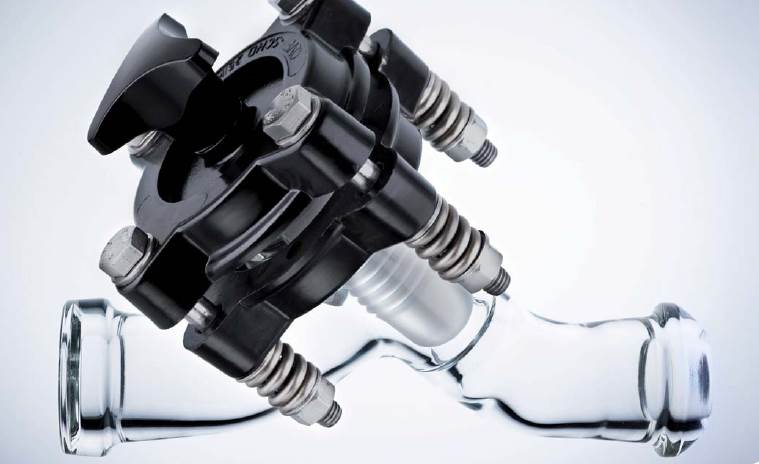

  • Improved Design – including new patent pending spring elements, a simplified grounding method, cleaner valve designs, and much more.

Download the QVF Catalogs (SUPRA and Miniplant)
