Research & Development System Profiles

3 API Pilot-Production Plant

System

API Pilot/ Production Plant

Location

Midwest USA

Description of Equipment

Two De Dietrich glass-lined steel reactors systems, 200 and 50 gallon capacity with:
  • QVF glass overheads and condensers
  • QVF glass columns with Dean/Stark trap
3 API Pilot-Production Plant rxtr controls











5 API Kilo Plant

System

API Kilo Plant

Location

Switzerland

Description of Equipment

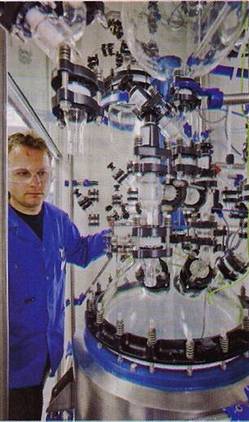

5 API Kilo Plant Reactor close upTwo QVF pharma reactor systems, 63 and 100 liter capacity with:
  • QVF glass overheads
  • De Dietrich VERI glass-lined steel reactor body
  • Portable mix/transfer vessels, 30 liter
  • GMP/ WPR glass system



















6 API Kilo-Pilot Plant

System

API Kilo/Pilot Plant

Location

Eastern USA

Description of Equipment

Two QVF pharma reactor systems, 60 and 100 liter capacity with:

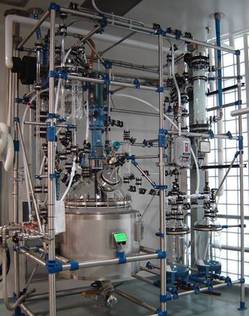

  • 6 API Kilo-Pilot Plant reactorBudzar dual loop HTMs
  • QVF glass overheads / SiC tube condensers
  • De Dietrich VERI glass-lined steel reactor body with OptiMix baffles

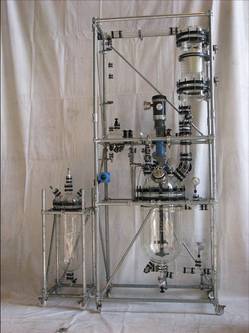

7 Specialty Chemical Production Plant drawing

System

Specialty Chemical Production Plant

Location

Western USA

Description of Equipment

QVF Q Series 100 liter reactor and 30 liter receiver featuring:

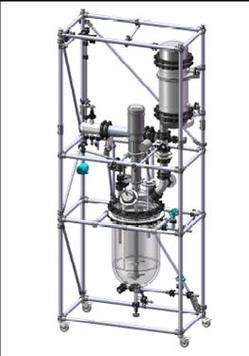

  • 7 Specialty Chemical Production Plant 3D imageGlass vessels and overheads
  • Phase separator
  • Mobile structures
  • HTM’s

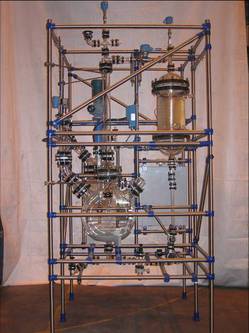

7 Specialty Chemical Production Plant























8 Specialty Chemical Pilot Plant

System

Specialty Chemical Pilot Plant

Location

Southwestern USA

Description of Equipment

QVF glass 50 liter mixer featuring:
  • Glass jacketed bottom and head
  • Vessel base lift mechanism
  • Air motor

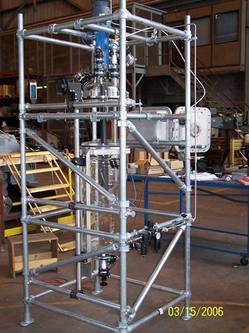

8 Specialty Chemical Pilot Plant reactor
















9 Specialty Chemical Production Plant

System

Specialty Chemical Production Plant

Location

Gulf Coast USA

Description of Equipment

QVF Glass Process System featuring:
  • 20 liter agitated and jacketed reactor
  • 100 liter charge/hold tank
  • Product scrubber
  • Metered charge system

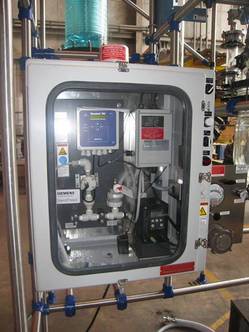

9 Specialty Chemical Pilot Production Plant controls

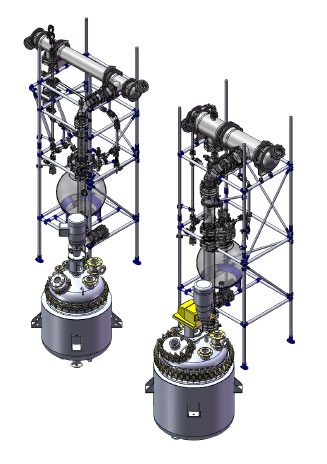

API-reactor-system-profileSystem

High-potency API (HPAPI) development and manufacturing

Location

Midwest USA

Description of Equipment

2 De Dietrich glass-lined steel OptiMix reactors systems, 100 and 200 gallon capacity, with:

  • Shell and tube overhead condensers
  • Dual receivers and interconnecting piping
  • Full function Factory Acceptance Test
