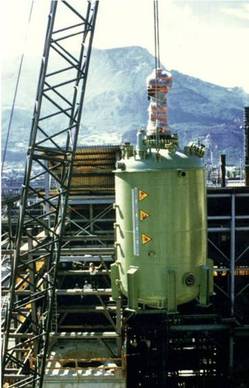

    Glass-Lined Reactors

    Robustly designed and manufactured to stand up to very harsh environments, providing superior corrosion resistance for demanding service conditions.

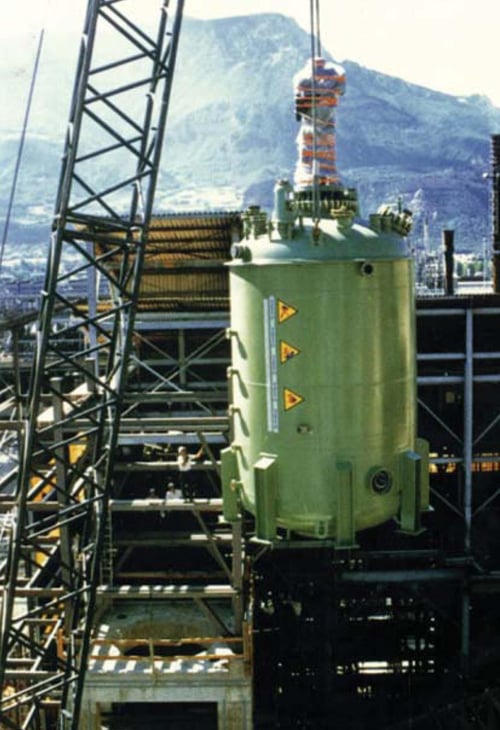

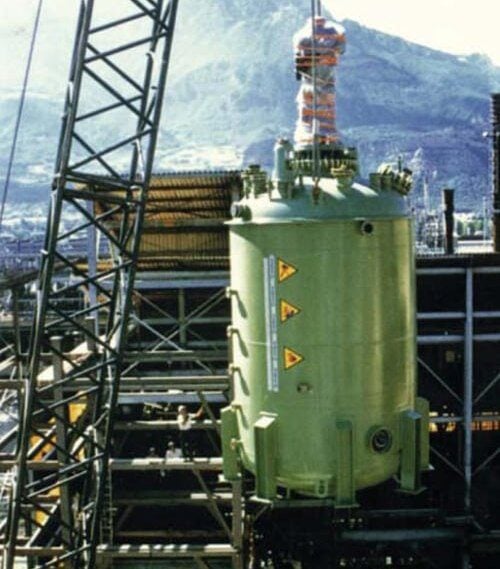

    Maintenance_Manual_Reactor (1)

    De Dietrich glass-lined reactors have been at the heart of chemical operations for over a century.  The (typically) carbon-steel shell is designed and built to ASME code and then lined internally with our proprietary 3009 Glass.   De Dietrich provides a series of glass-lined reactor models in a range of sizes and meet the diverse processing needs of the chemical and pharmaceutical industries.

    New call-to-action

    Not sure which model reactor is best for your process?  Review our Glass-Lined Steel Reactor Comparison Chart below for more information:



    CTJ

    GL

    SA

    OptiMix

    Lab Reactor

    Main Feature

    Clamped-topped

    Closed-welded

    Large top head main cover

    Wall-mounted baffle system in CTJ or GL design

    Laboratory/scale-up size complete with insulation and sheathing

    Advantages

    Easy entry facilitates   cleanability

    Top head strength enables higher internal pressure rating, eliminates need for gaskets, more room for   additional nozzles

    Opening enables use of one-piece   agitators, narrow annulus jacket spacing enables quick heat up and cool down

    Improved CIP efficiency, enhanced   heat transfer and mixing, frees up nozzles for other use, reduces shaft   deflection and extends seal life by minimizing the bending loads on the   agitator shaft.

    Easy to operate, allows for scale up work in same environment as full size De Dietrich reactor, emptying mechanism enables cleanability

    Standard Agitator

    Pitch blade turbine or retreat   curve impeller

    GlasLock Agitator with removable   blades

    Retreat curve impeller or GlasLock   agitator with removable blades

    See CTJ/GL

    Turbine

    Drive

    Vertically mounted variable or   fixed speed

    Vertically mounted fixed speed

    Vertically mounted fixed speed

    Vertically mounted fixed speed

    Variable speed

    Internal Pressure

    90/150 psig (6/10 bar)

    130 psig (8.7 bar)

    100 psig (6.7 bar)

    90/150 psig (6/10 bar)

    580 psig

    Internal Vacuum

    Full

    Full

    Full

    Full

    Full

    Temperature (Max.)

    500°F (260ºC)

    500°F (260ºC)

    500°F (260ºC)

    500°F (260ºC)

    482°F (250ºC)

    Temperature (Min.)

    -20°F (-30ºC)

     -20°F (-30ºC)

     -20°F (-30ºC)

     -20°F (-30ºC)

     -20°F (-30ºC)

    Volume

    2 to 2000 gal

    300 to 10,000 gal

    300 to 25,000 gal

    30 to 2,000 gal (CTJ) / 300 to 10,000 (GL)

    6.3 liters

    Clamped-Top / CTJ Reactors

    De Dietrich CTJ series are clamped or flanged-top reactors designed with a removable top head for today’s cleanability demands. They have sturdier flanges and are fabricated from thicker steel than competitive vessels, which reduces flange warpage and provides greater corrosion allowance. There are other features too which make installation, operation and maintenance much easier.
    Glass-lined_reactor_maintenance_image

    Have Questions? We are here to help.

    Get In Touch
    features-block-icon

    Features

    • Volumes from 5 to 2000 gallons
    • Pressures from full vacuum to 90/150 psig
    • Temperatures from -20°F to 500°F
    • Vessels available in glass-lined stainless steel or with glass-lined stainless steel manway or top covers
    advantages-block-icon

    Advantages

    • Drive does not obstruct nozzles or accessories
    • All welds are examined by dye penetrant test and ultrasonic test, standard
    • Lifting lugs individually capable of supporting the empty vessel for ease of handling
    • Greater heat transfer due to increased turbulence in smaller annular jacket space
    • 20,000 volt spark test standard
    • Guaranteed plug free
    • Vessel internal and jacket allowable temperature differentials are greater than competitive designs

    Closed-Welded / GL Reactors

    GL series closed-welded reactors are built without a large main opening to maximize top head strength and allow for higher pressure ratings. This design is made possible by De Dietrich’s adjustable blade GlasLock® agitator. The agitator blades are readily passed through the manway for installation into the impeller hub, negating the need for a main cover.

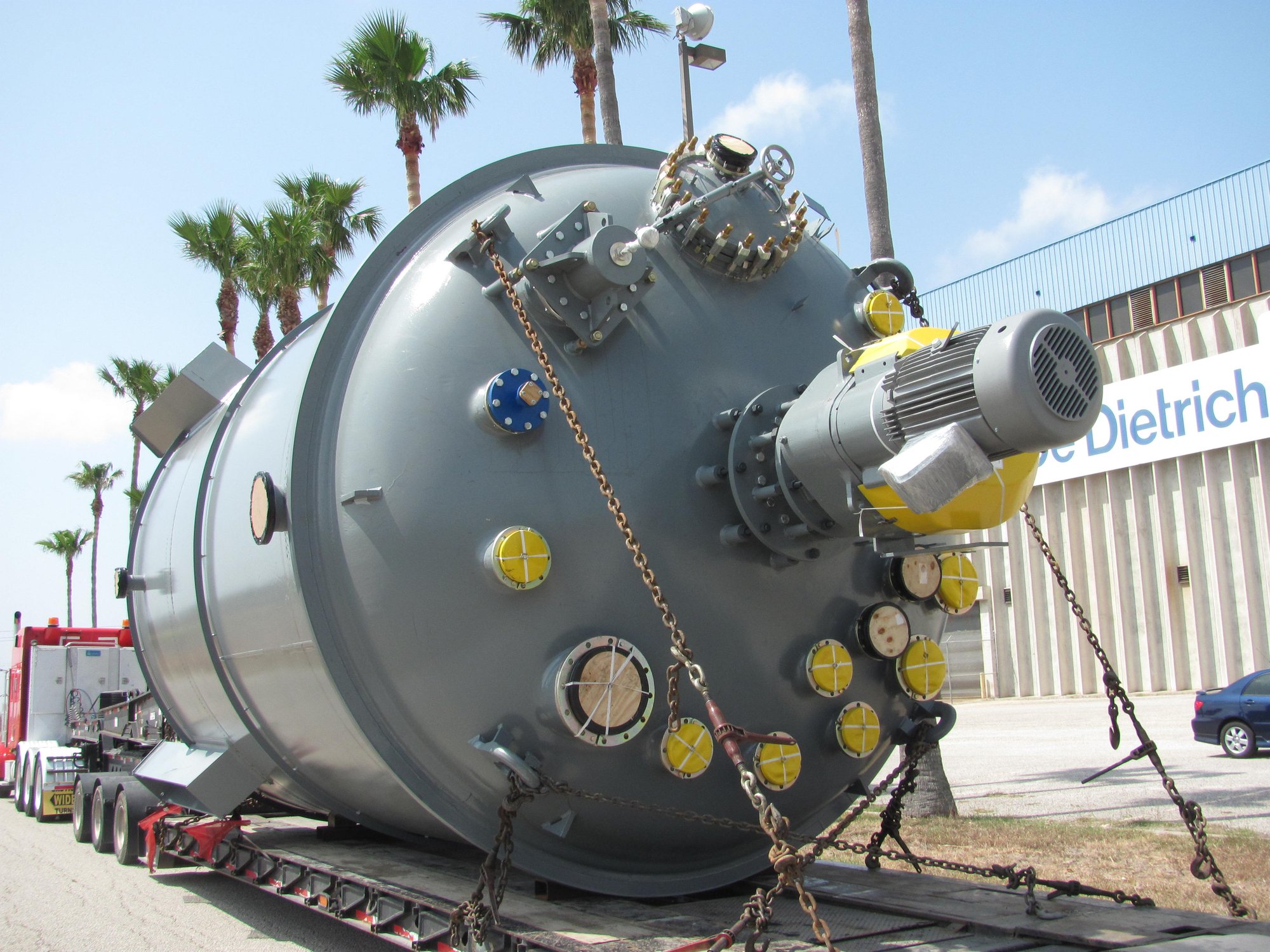

    HemiCoil_Jacketed_reglassed_reactor (1)

    Have Questions? We are here to help.

    Get In Touch
    features-block-icon

    Features

    • Lined with 3009 glass and equipped with a GlasLock agitator with adjustable blades
    • Fixed speed drive is vertically mounted to keep nozzles and accessories unobstructed for operational use.
    • Volumes from from 300 to 10,000 gallons
    • Pressures from full vacuum to 130 psig (8.7 bar)
    • Temperatures from -20°F (-29ºC) to 500°F (260ºC)
    advantages-block-icon

    Advantages

    • Reactors with higher internal pressure rating (up to 130 psig compared to a conventional 100 psig)
    • Gain in top head strength
    • More and larger process nozzles
    • Larger manways
    • No need for large gasket (and possible shimming)
    • Fewer spare parts needed
    • Reduced principal area for potential leaks

    Large Top Head Manway / SA Reactors

    The standard design in glass-lined steel reactors for over 40 years, the SA series are rugged, heavyweight reactors that feature a signature large top head main cover. This “J” bolted opening was designed to accommodate installation and removal of one-piece agitators.
    SA Reactor

    Have Questions? We are here to help.

    Get In Touch
    features-block-icon

    Features

    • Lined with 3009 glass and equipped with a one-piece agitator (GlasLock adjustable agitators easily retrofits all SA reactors)
    • Fixed speed drive is vertically mounted to keep nozzles and accessories unobstructed for operational use.
    • Volumes from 300 to 25,000 gallons
    • Pressures from full vacuum to 100 psig (6.7 bar)
    • Temperatures from -20°F (-29ºC) to 500°F (260ºC)
    • Jacketed reactors are available with either a conventional jacket (SA) or with a HemiCoil® split pipe-coil jacket (CSA).
    advantages-block-icon

    Advantages

    • Superior glass formulation resists a wide range of chemical attacks
    • Jacket inspection/cleanout port eliminates dismantling of jacket piping, allows fast inspection and cleaning of reactor jacket
    • Narrow annulus jacket spacing provides quicker heat-up and cool-down
    • Standard 3000-lb. ANSI forged-steel jacket couplings are stronger, with greater corrosion allowances than other manufacturers
    • Large main opening easily accepts wide one-piece glass-lined, alloy or fluoropolymer-coated agitators

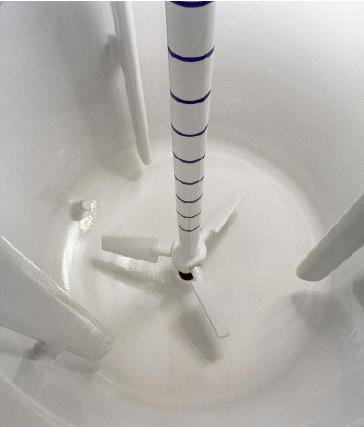

    OptiMix Reactors

    OptiMix is a patented reactor design that optimizes the mixing performance of glass-lined reactors by integrating three baffles on the vessel wall. This design enhances heat transfer, solids suspension and distribution, gas dispersion, gas flow rates, and mass transfer through improved mixing, making it a preferred design for chemical and pharmaceutical applications. It also eliminates the need for top entry baffles, freeing up an additional nozzle for process use.

    Additionally, a new enhancement to the design, called OptiMix-HE, circulates the thermal fluid contained in the half-coil reactor jacket through the baffles for even more process optimization. OptiMix-HE increases heat transfer area 25% or more, enabling better homogeneity, faster thermal management, and shortened cycle times.
    OptiMix_Reactor_Interior

    Have Questions? We are here to help.

    Get In Touch
    features-block-icon

    Features

    • Lined with 3009 glass for superior corrosion resistance
    • Sized to fit vessels from 30 gallons
    • Pressures from full vacuum to 90/150 psig
    • Temperatures from -20°F to 500°F
    • Also available in QVF borosilicate glass reactor designs
    advantages-block-icon

    Advantages

    • Improved CIP efficiency by eliminating the difficult to clean top head pocket at the baffle/nozzle interface
    • Vortexing and splashing are significantly reduced, resulting in less product drying and sticking to the heated wall above the liquid surface
    • The symmetrical baffling of the OptiMix reactor reduces shaft deflection and extends seal life by minimizing the bending loads that are imposed on the agitator shaft
    • Get new technology without needing a new vessel - OptiMix baffles can be added to existing equipment during reglassing

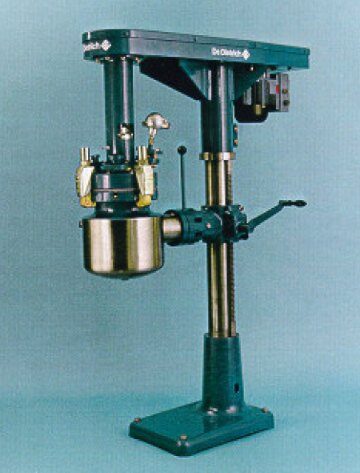

    Laboratory Reactors

    Our glass-lined laboratory reactor combines the quality and strength of production-sized De Dietrich reactors in a small-scale laboratory design.  This apparatus makes it possible for you to test your process in the same ultra-pure environment that exists in a production size vessel. The 6.3 liter laboratory reactor is designed to handle a large range of process conditions.
    laboratory reactor

    Have Questions? We are here to help.

    Get In Touch
    features-block-icon

    Features

    • The unique reactor stand incorporates a complete drive system and an emptying mechanism with a sturdy support structure.
    • The inner vessel is rated for 580 psig and full vacuum
    • The jacket is rated for 290 psig
    • Temperatures from –20°F to 482°F
    advantages-block-icon

    Advantages

    • Allows you to test your product in De Dietrich glass-lined equipment before you scale up to production-sized units.
    • Easy to operate emptying mechanism assures complete drainage of the product while allowing excellent cleanability.

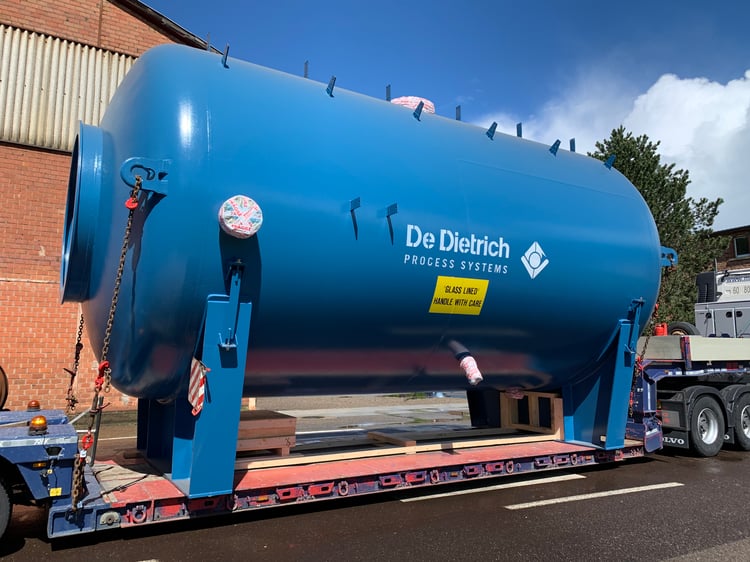

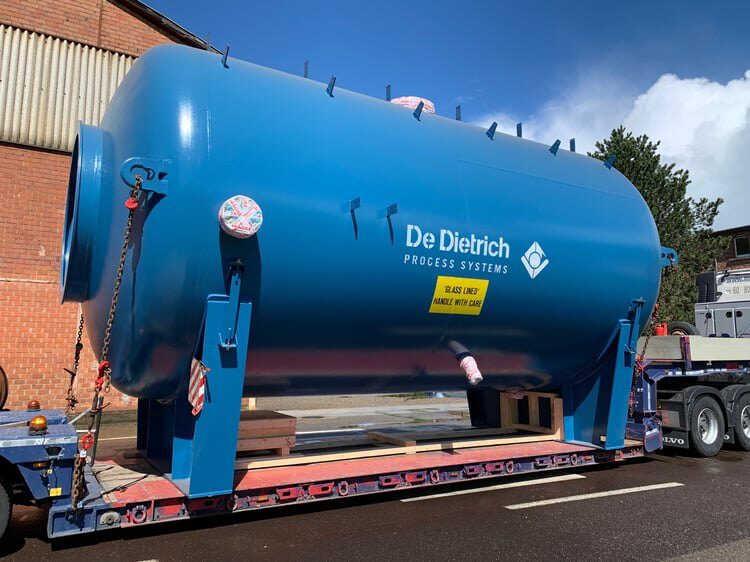

    Storage Tanks and Receiving Vessels

    Glass-lined steel tanks are also available for corrosion resistant intermediate chemical storage.
    IMG_3375 (1)

    Have Questions? We are here to help.

    Get In Touch Learn More
