    Extraction

    When separation can be achieved by distillation, extraction is generally not considered as a viable option.  There are instances, however, when distillation is not feasible, and extraction becomes the most practical process solution.

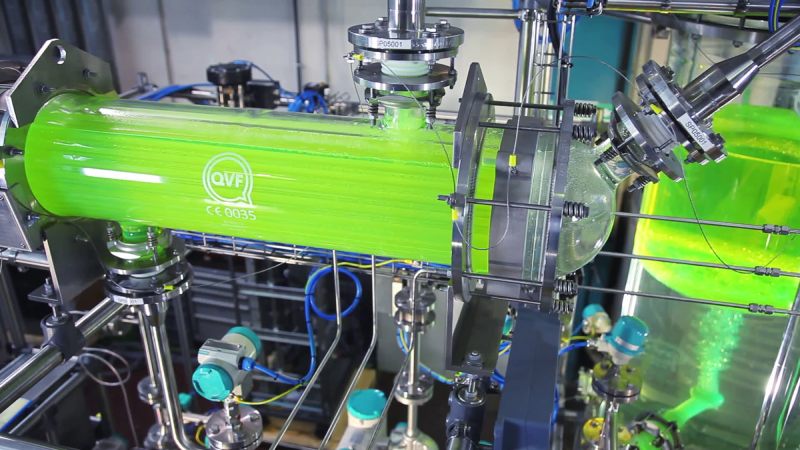

    vlcsnap-6011-12-10-03h40m55s720 copy (1)

    Liquid/Liquid Extraction Solutions:

    • Batch operated Mixing/Settling Units
    • Continuously operated Mixer-Settlers
    • Continuously operated Extraction columns

    Solid/Liquid Extraction Solutions:

    • Soxhlet Extraction Units
    • Trickle Bed Extraction Unit
    • Over Flow Extraction Units

    Resources

    De Dietrich provides the extraction equipment and the process solution for recovering high boiling organic components out of industrial effluent water to accomplish solvent regeneration for industrial applications such as phenol recovery and acetic acid recovery.

    De Dietrich has a long history in designing and manufacturing these extraction processes and system. Our extraction plants are built from corrosion resistant De Dietrich glass-lined and QVF borosilicate glass components, providing process optimization through these unmatched materials of construction.

    In addition to theoretical calculations and decades of extraction experience, De Dietrich can also perform trials in our experimental hall to develop the optimum process and to select the most suitable extraction equipment for your application.

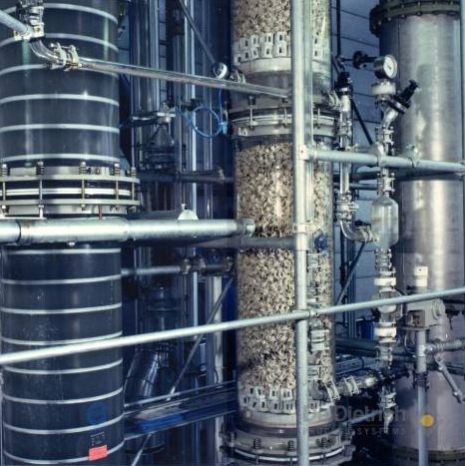

    extraction_column_with_packing
    Solid/Liquid Extraction Liquid/Liquid Extraction

    Solid/Liquid Extraction

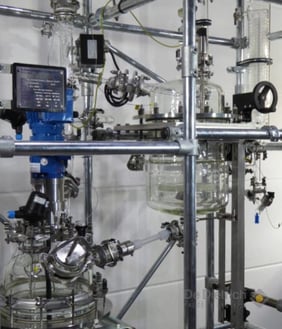

    QVF_extraction_system

    Solid/Liquid extraction process is a very common process in the pharmaceutical, cosmetic and food industries to obtain natural ingredients as flavors and fragrances from natural raw material.

    The extraction can be carried out with hot or cold solvents.

    The solid raw material is packed in a container with a retainer on the bottom (extractor B2 - see diagram below) and extracted batch wise.

    The solvent is guided through the extractor in different ways

    • Continuous trickle bed extraction
    • Continuous overflow extraction
    • Soxhlet extraction (periodically filled and drained container)

    Using solvents with a lower density than the raw material avoids floating of the raw material and eases the process.

    Very often the solvent is evaporated in B1 from the extract directly after leaving the extractor, then condensed in W2 and guided back into the extractor B2.

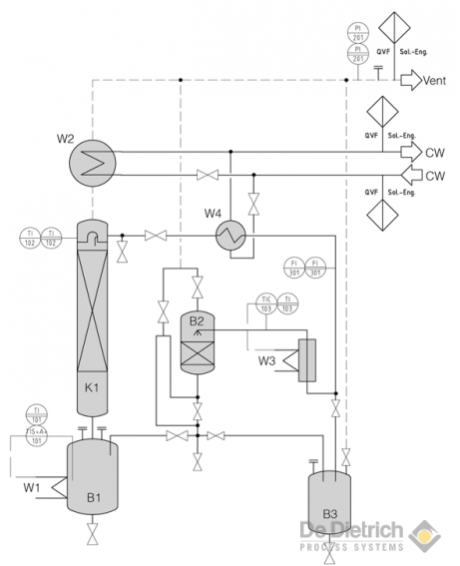

    A typical flow chart of a solid/liquid extraction process.
    Solid-Liquid_extraction_diagram

    Once the ingredients are extracted from the raw material, the solvent is carefully evaporated to avoid degradation of the desired ingredient.
    Request More Information

    Liquid /Liquid Extraction

    Distillation is based on liquid/vapor interaction;  Extraction is based on liquid/liquid interaction.

    Requirements for the Solvent

    The solvent will have to be checked for the following characteristics:

    • Maximum solubility of the product in the solvent
    • Minimum solubility of the solvent in the raffinate
    • Minimum solubility of the feed liquid in the solvent
    • Fast phase separation of the extract from the raffinate
    • Easy separation of the product from the extract/solvent

    With the right solvent there are numerous applications which can utilized the extraction process.

    When to Use the Extraction Process

    The liquid/liquid extraction process is favorable for separations as for:

    • products having similar volatilities
    • products forming azeotropes
    • products which would require high energy input in distillation
    • products being temperature sensitive
    • non-volatile products as e.g. metal salts

    Equipment to carry out extraction processes

    Extractions can be carried out by batch (using mixers) or in continuous mode (using mixer-settlers or columns). In addition to theoretical calculations and extraction expertise, De Dietrich can also perform trials in our experimental hall to develop the optimum process and select the most suitable extraction equipment for you. Borosilicate glass 3.3 is an ideal material for extraction equipment as the process can be optimized while visually observing the process.

    Batch mode - Mixers/Reactors

    Using a mixer in batch mode offers a huge flexibility to optimize the mass transfer by varying multiple aspects of the process, including ratio of the liquid phases, the type of stirrer, stirrer speed, and mixing time. The settling period can also be easily influenced by varying the time.

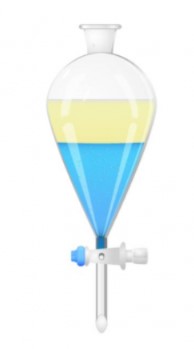

    Extraction funnel

    Mixing and subsequent settling in a separation funnel

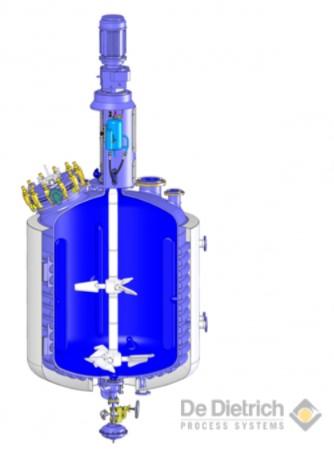

    mixing and settling in reactor

    Mixing and subsequent settling in a reactor

    Continuous mode - Mixer-Settlers and Columns

    Operating in continuous mode is less labor sensitive and the equipment is smaller, but the equipment has to be fitted more exactly to the mixing and settling processes.  For example, the “time” parameter can only be adjusted only by adjusting the throughput. Therefore various types of mixer-settlers and extraction columns are available to suit the many different extraction applications.

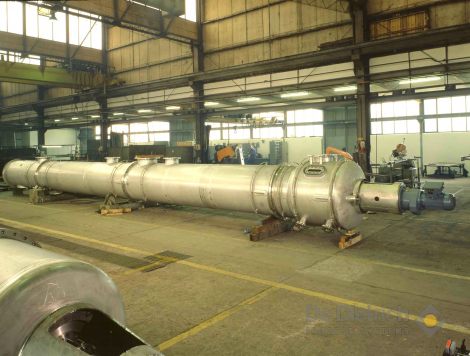

    qvf_extraction_rze_edelstahl

    Stainless Steel Extraction Column

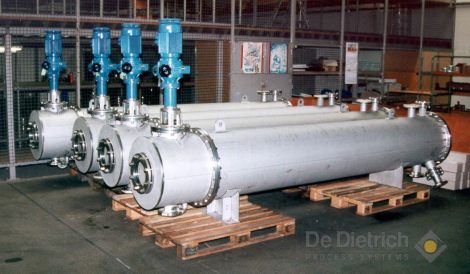

    qvf_extraction_mixersettler-edelstahl

    Stainless Steel Mixer-Settler
    Request More Information

    How to Find the Best Solution?

    The phase distribution equilibrium coefficients are the basis for the selection of an extraction process and the calculation of the minimum number of theoretical extraction stages. The type and size of the real extraction stages are determined by the mass transfer and phase separation processes. Mass transfer and phase separation are strongly dependent on the characteristics of the interface between the 2 liquid phases. Any surfactants present, even small amounts, can have an important impact on the extraction process, making results from extraction trials with your real feed liquors important for a reliable process design. Testing at our experimental hall will help to optimize your process. The information obtained from these trials, combined with theoretical calculations, are the foundation for selecting the most suitable extraction system.
