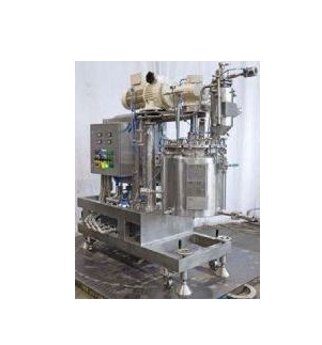

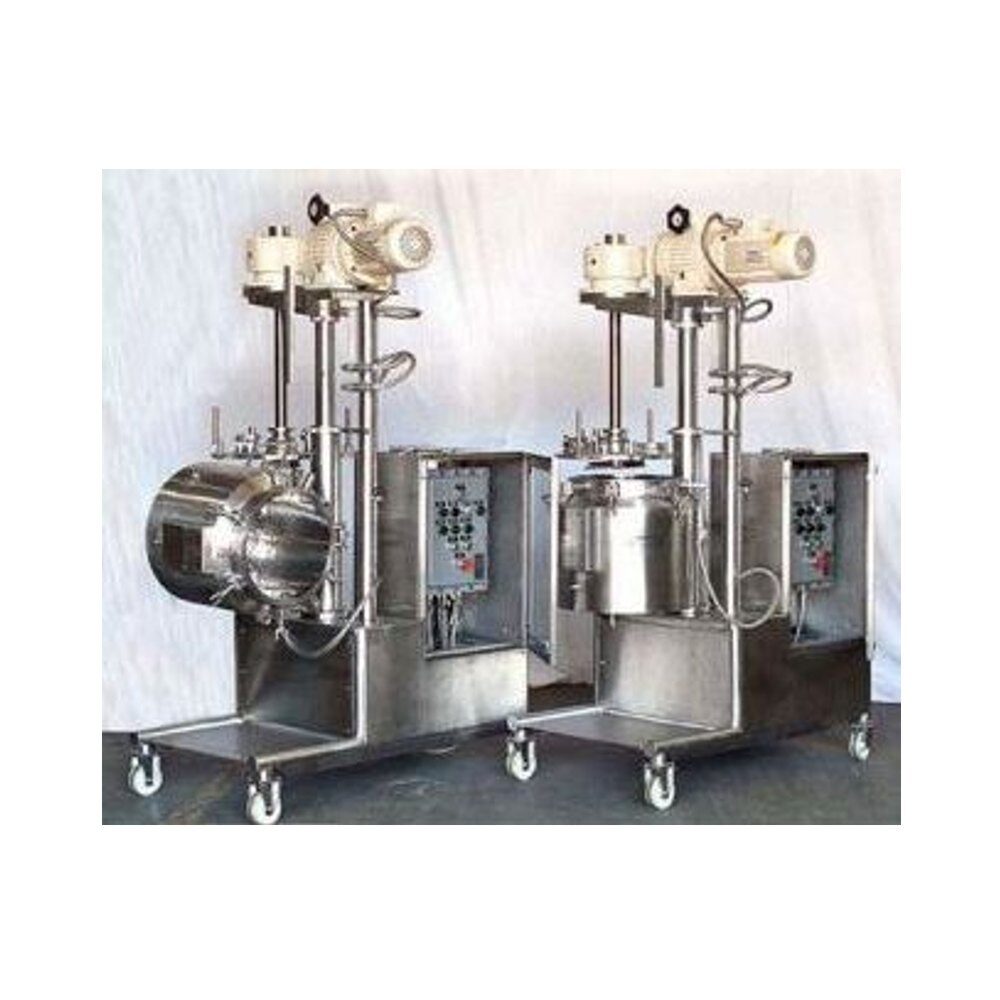

HEINKEL Pilot Plant Filter Dryer & Vacuum Dryer

Calculation, manufacture and design are in accord with Pressure Equipment Directive 97/23/EG or/and ASME U-stamp as well as with cGMP and FDA guidelines
Approved for using in ATEX danger zone, group II 2G 2D (zones 1/ 21)
Suitable as vacuum dryer, filter dryer or agitated nutsche filter
Shaft seal through gland nut
Device built on skid
Control system protected against explosion (EEx-d)

Options

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Filter area	0.20 to 10 m²
Slurry volume	100 – 10,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +4 barg (FV to 60 psig) or per requirements
Heated areas	All product wetted components, including agitator
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
