    Glass Columns

    Corrosion resistant columns in glass or glass-lined steel construction to handle absorption, desorption, distillation and extraction applications.

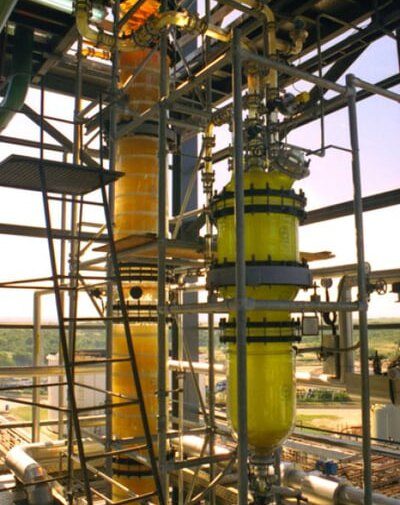

    Denitration-Column-to-Recover-Nitric-Acid

    Benefits

    • Columns are designed for processes involving highly corrosive acids.
    • Main components are designed and manufactured according to national and international quality standards and directives.
    • Our guarantees to ensure your process solution is reliable and efficient.
    Glass-Lined Steel Columns Glass Columns Overheads for Reactor Systems

    Glass-Lined Steel Columns

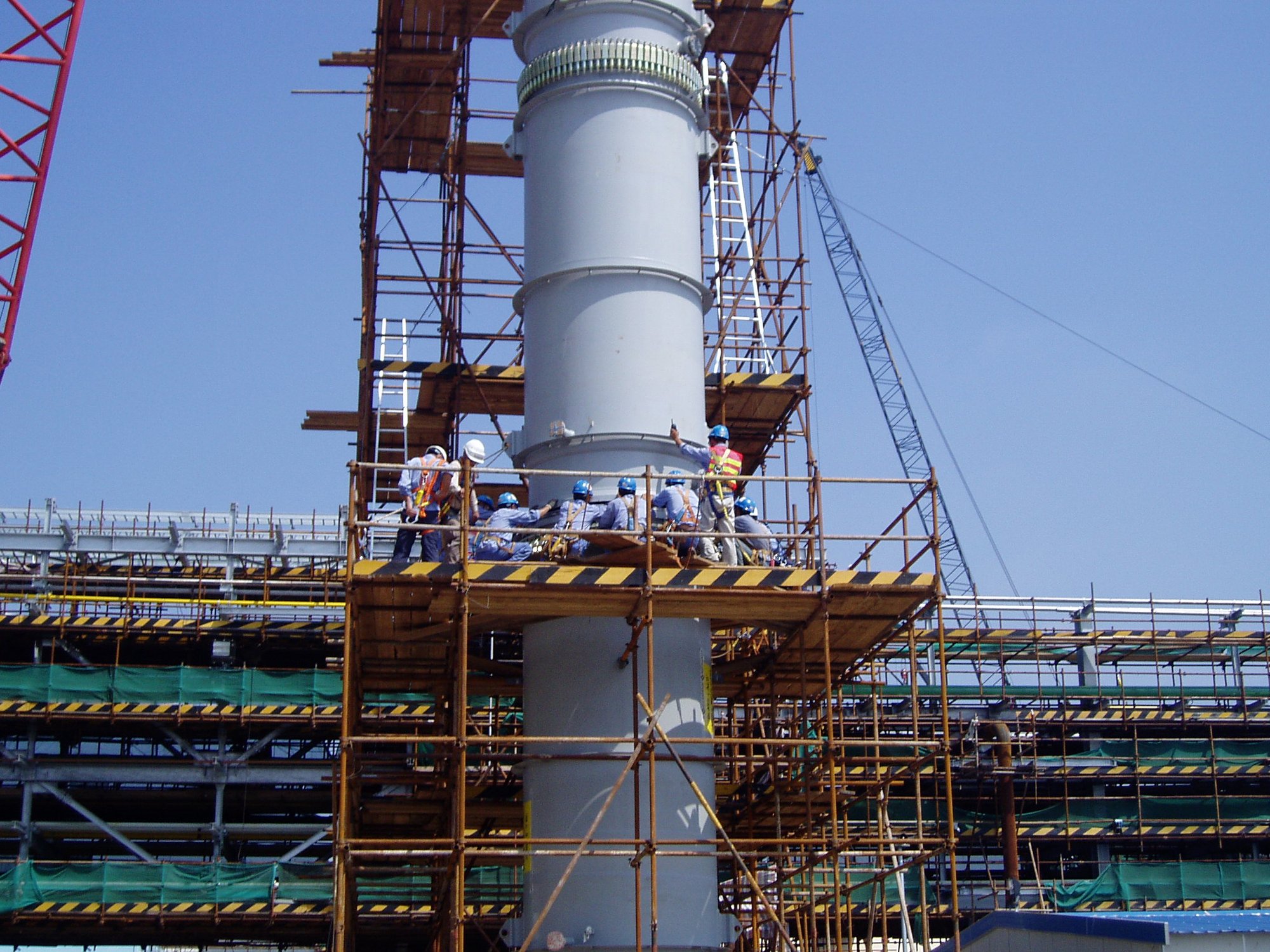

    24072006 Boitier Burgman Osram Bruntal 227

    De Dietrich has a long history and experience in designing glass-lined steel column systems to meet individual requirements.  Our columns are manufactured to handle the toughest applications.  In addition to the standard assemblies, De Dietrich can also fabricate special designs for customer’s specific process requirements, including special conical, eccentric, stepped and angled column sections.

    Features

    • Diameters from 6” (150 mm) to 84” (2130 mm)
    • Lengths up to 236” (6000 mm)
    • Clamps, gaskets, split flanges and bolting are all supplied with a complete column system.



    Additional options

    • Glass-lined support plates (donut, perforated, slotted)
    • Conventional or HemiCoil® jackets
    • Insulation support rings
    • Stainless steel clamps, flanges, or bolting
    • Special gaskets (e.g., thicker, channel cut, U-cut, Monel inserts, etc.)
    • Concentric or eccentric reducers/expanders
    • Davited manway covers
    • Supports - side lugs, removable rings, or support skirts
    Request More Information

    Glass Columns

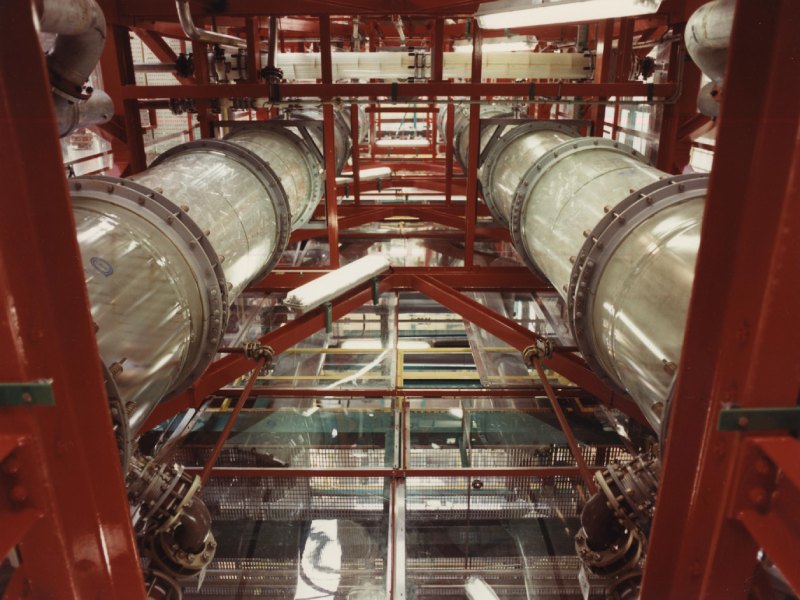

    columns1-QVF_nitricacid_NitricAcidColumns

    Borosilicate glass columns have been used successfully for many years in the field of distillation operations mainly for the benefits of its anti-corrosive and transparent material of construction.  They are normally filled with packing materials made of borosilicate glass, but other packing materials can also be supplied.  Cooling arrangements for the distillate can use either shell and tube or coil type heat exchangers.

    Features

    • Diameters from 3" (80 mm) to 40" (1000 mm)
    • Heights up to 100 ft (30 meters)
    • Operates at atmospheric pressure or at high vacuum



    Additional options / components

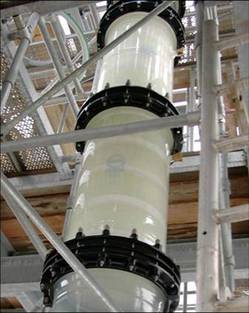

    • Durapack - a structured glass packing with outstanding separation properties, ideal for processes that require no metal.
    • Core-Tray support - provides a solution for the problem of metal-free support trays with a large free cross-section of 120%. (Liquid feeds based on the same Core-Tray design principle are also available).
    • Liquid collectors
    • Redistributors
    • Automatic control system
    • Reboiler vessels
    • Condensers / Boilers / Coolers
    • Reflux separators and timers
    • Various types of packing
    Request More Information

    Overheads for Reactor Systems

    Overhead components can be integrated with your reactor (or other type of vessel) to create a system that can efficiently carry out reaction, distillation, and other process functionalities.  De Dietrich glass and glass-lined steel columns can both be incorporated with a process vessel to handle multiple unit operations within a single system.
    Overhead-reactor-image-1-ddps

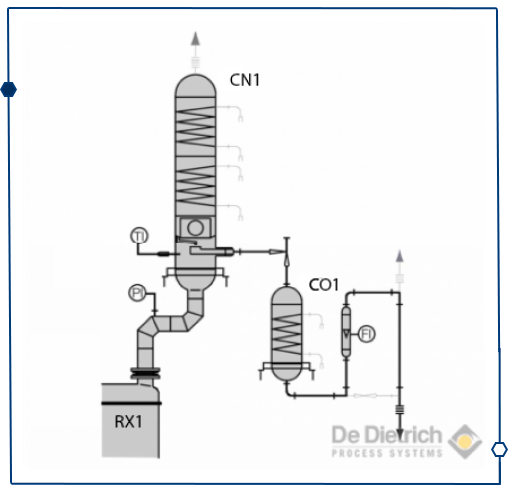

    Distillation top with shell and tube heat exchanger and external reflux separator for vessels above 630 liters.

    Overhead-reactor-image-2-ddps

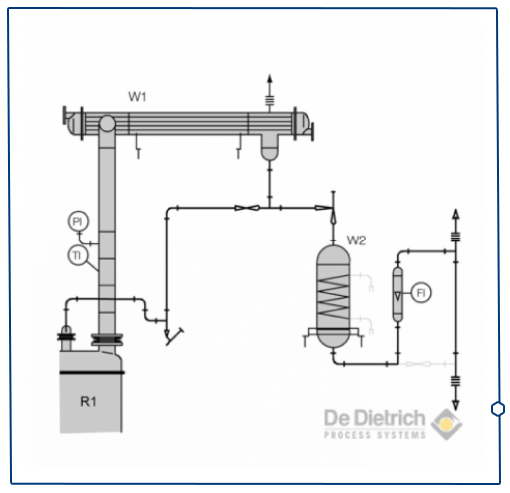

    Distillation top with shell and tube heat exchanger and external reflux separator for vessels above 630 liters.

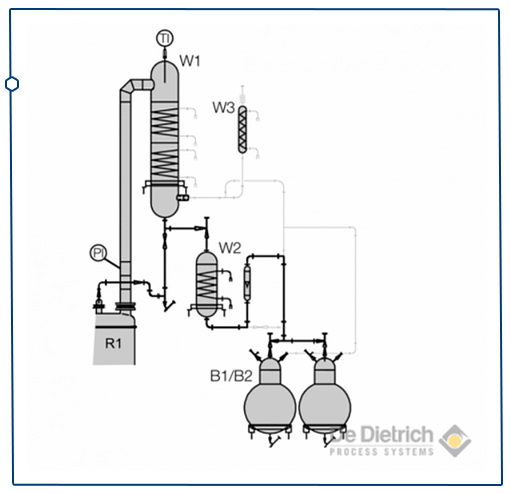

    DDPS-Diagram-vaccum-distillation

    Falling condensation in the vacuum with receivers.

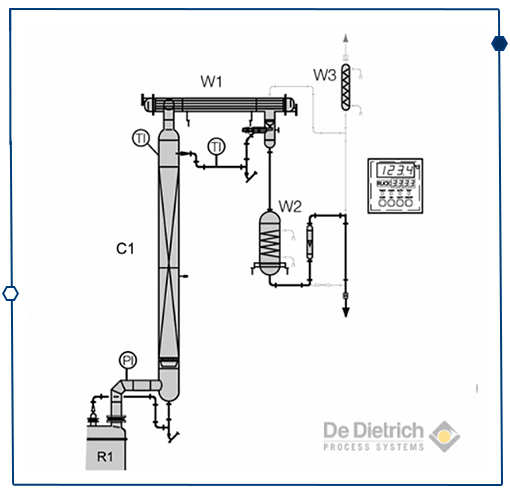

    DDPS-Diagram-rectification-Rev1

    Distillation columns with controlled reflux condition for concentration with random packing or DURAPACK.

    DDPS-Diagram-distillation-HE-Rev1

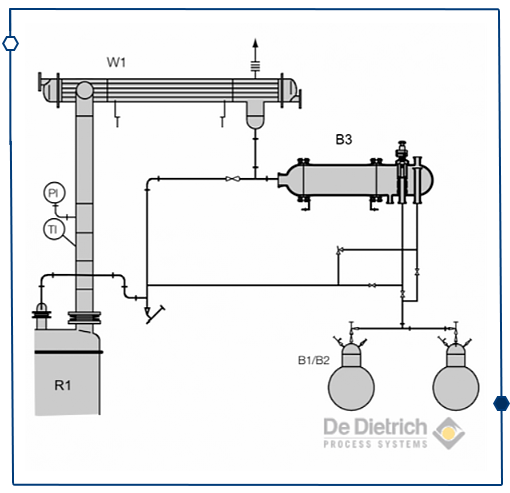

    Distillation top with phase separator for azeotrope mixture. Optional interconnection of phases.

    Request More Information

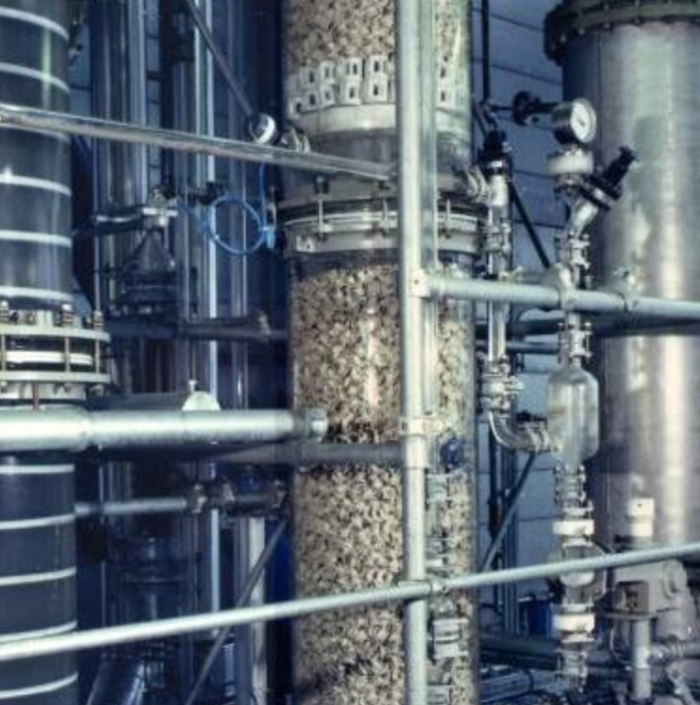

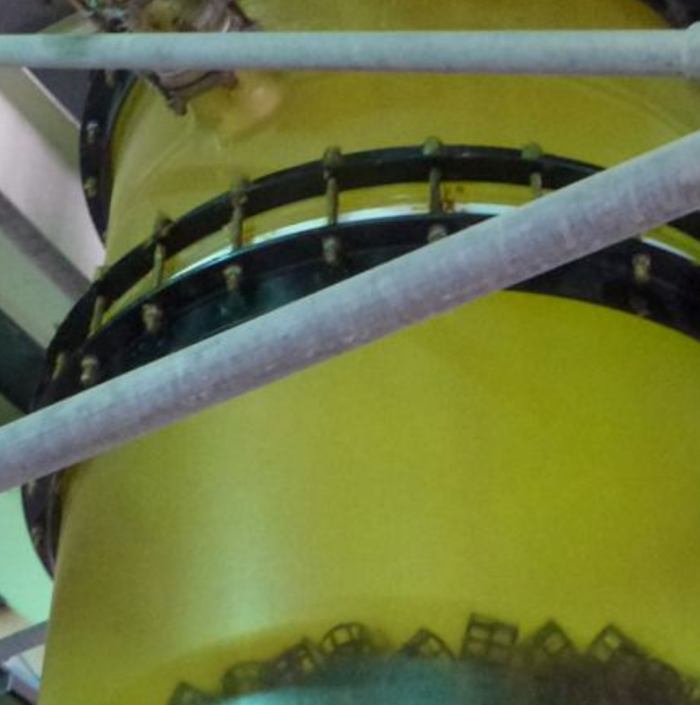

    Related Solutions

    Request a Quote

    Want pricing? Have Questions?
    We are here to help.
    Get in Touch
