Optimizing Drying Times & Process Performance with Agitated Nutsche Filter Dryers

Nutsche filter dryers are designed to address the unique challenges of optimizing a final product's purity, stability, and overall quality by offering precise control and isolation capabilities during both the filtration and the drying phase. These units combine filtration and drying capabilities in a single piece of equipment, optimizing facility space and process flow. This blog post focuses on the flexibility of the drying process within Nutsche filter dryers, exploring the advantages of vacuum, convection, and blowdown drying methods, and how they contribute to enhancing process performance and reducing drying times.


Vacuum Drying: Efficiency Meets Quality

Vacuum drying utilizes low pressure to reduce the boiling point of solvents, enabling drying at lower temperatures. Typically, this process is agitated to improve heat transfer efficiency, by increasing product contact with heated surfaces. This method is particularly beneficial for heat-sensitive materials, as it minimizes thermal degradation while effectively removing solvents and decreasing the drying time significantly compared to traditional drying methods. Nutsche filter dryers provide a sealed, controlled environment that enhances drying efficiency and product quality.  Vacuum drying in a nutsche filter is depicted in the following diagram:

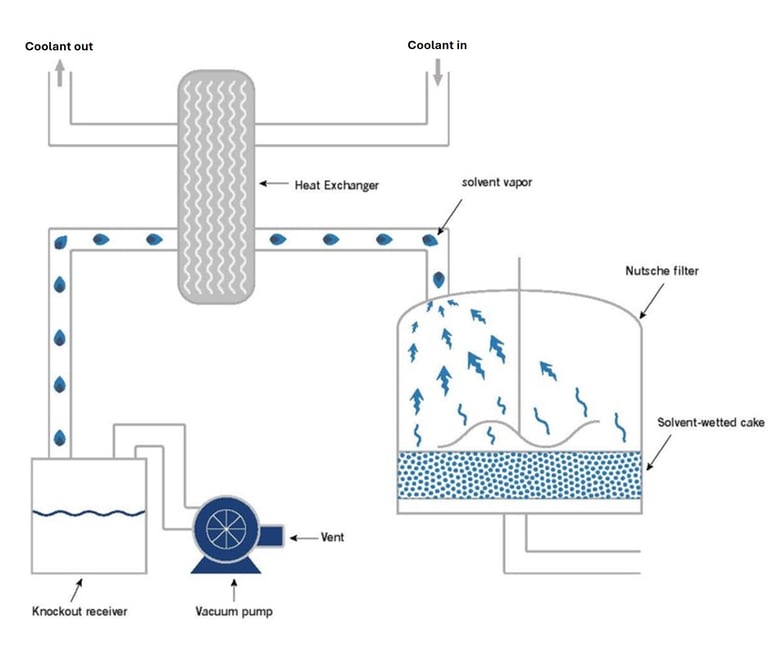

Vacuum drying diagram-1


Convection Drying: The Role of Saturation

Convection drying in Nutsche filter dryers introduces heated air or gas directly into the product. Agitation could be used if the process dictates, but this is not typical. This method is effective for materials that can withstand higher temperatures. The direct transfer of heat through the solids cake accelerates the evaporation of solvents and the saturation of the dry gas stream provides a mechanism for drying. Note, convection drying has a longer cycle time than vacuum drying, and increases the flashpoint.  This drying method is further outlined here:

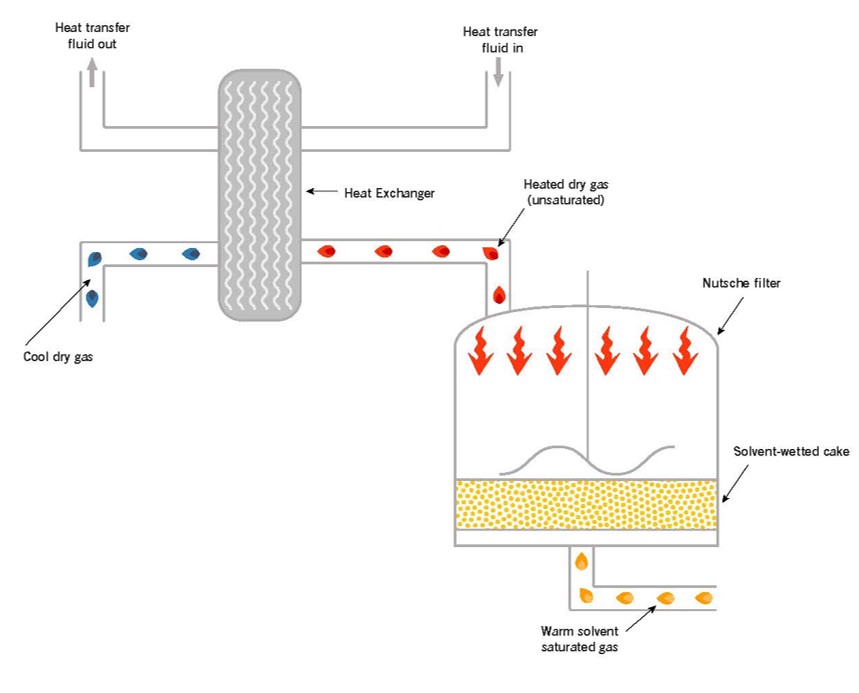

Convection Drying


Blowdown Drying: Enhancing Evaporation

Blowdown, also called "dewatering" or "pre-drying", involves passing a stream of gas (often nitrogen for its inert properties) downward through the product. Agitation is not normally used for blowdown.  This method is particularly useful for removing the final traces of solvent liquid from the product, and improves drying efficiency in the secondary drying steps (such as vacuum or convection drying). The gas stream not only assists in evaporation by offering an unsaturated medium for vapors to escape through, but also helps to displace any residual liquids and vapors from the product bed, ensuring a dry, high-quality final product.  A process that utilizes blowdown drying would look something like this:

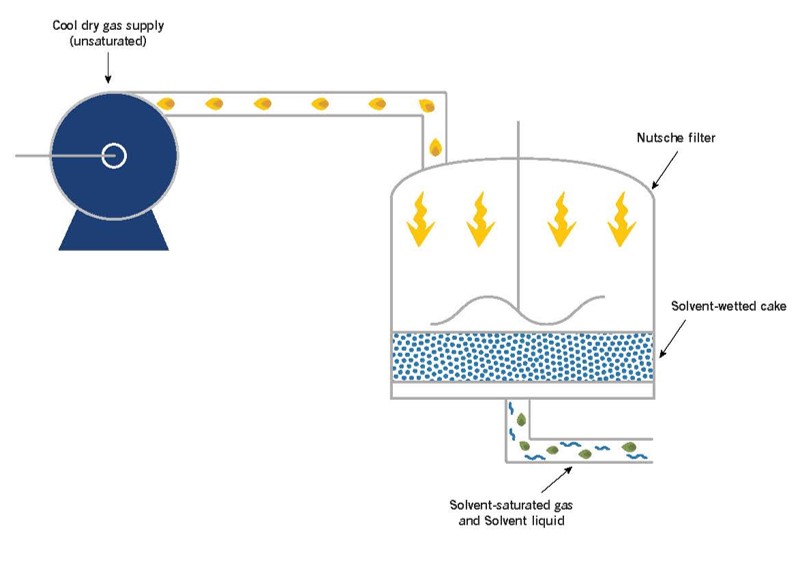

blowdown drying


What’s the Difference? Benefits of Optimized Drying Times and Process Performance

By leveraging the capabilities of nutsche filter dryers and their drying options, manufacturers can achieve a multitude of benefits that impact both the product and the production cycle, including:

  • Enhanced Product Quality: Controlled drying conditions ensure that the product's integrity is maintained, meeting the highest standards of purity and stability.
  • Increased Efficiency: Optimized drying times translate to faster cycle times, allowing for more batches to be processed within the same timeframe, thereby increasing throughput.
  • Energy Savings: Efficient drying methods, especially vacuum drying, consume less energy, contributing to a more sustainable and cost-effective manufacturing process.
  • Reduced Risk of Contamination: The closed system of nutsche filter dryers minimizes the risk of contamination, crucial for maintaining stringent hygiene and quality standards.


The drying process in nutsche filter dryers, with its vacuum, convection, and blowdown options, offers a sophisticated approach to managing the challenges of drying various materials. By optimizing drying times and enhancing process performance, these system customizations play a vital role in ensuring the efficiency, quality, and safety of the manufacturing process.

For more information or to discuss your process requirements with an expert, contact us.  Looking to explore more on the subject of deep bed filtration?  Check out our white paper on the subject.
