Specialty Chemicals System Profiles

1 Specialty Chemical Production PlantSystem

Specialty Chemical Production Plant

Location

Western USA

Description of Equipment

Four De Dietrich glass-lined steel OptiMix reactors systems, 200 and 500 gallon capacity with:
  • 1 Specialty Chemical Production Plant controlsTa overhead condensers
  • Contained solid charging
  • HTM’s
  • Automation and controls
  • Full function Factory Acceptance Test with water batches




2 Specialty Chemical Production Plant

System

Specialty Chemical Production Plant

Location

Eastern USA

Description of Equipment

One De Dietrich glass-lined steel reactors system, 1,000 gallon capacity with:
  • 2 Specialty Chemical Production Plant solidworksStainless steel charge tank and overhead condenser
  • Heat Transfer Module
  • Automation and Controls
  • 3D modeling to expedite approval and delivery






7 Specialty Chemical Production Plant drawing

System

Specialty Chemical Production Plant

Location

Western USA

Description of Equipment

QVF Q Series 100 liter reactor and 30 liter receiver featuring:
  • 7 Specialty Chemical Production Plant 3D imageGlass vessels and overheads
  • Phase separator
  • Mobile structures
  • HTM’s

















7 Specialty Chemical Production Plant























8 Specialty Chemical Pilot Plant

System

Specialty Chemical Pilot Plant

Location

Southwestern USA

Description of Equipment

QVF glass 50 liter mixer featuring:
  • Glass jacketed bottom and head
  • Vessel base lift mechanism
  • Air motor







8 Specialty Chemical Pilot Plant reactor
















9 Specialty Chemical Production Plant

System

Specialty Chemical Production Plant

Location

Gulf Coast USA

Description of Equipment

QVF Glass Process System featuring:
  • 20 liter agitated and jacketed reactor
  • 100 liter charge/hold tank
  • Product scrubber
  • Metered charge system




9 Specialty Chemical Pilot Production Plant controls






















Semiconductor Production Plant

System

Semiconductor Production Plant:

Location

Pacific NW USA

Description of Equipment

QVF single stage, vacuum evaporator system, 35-50 gph rated with:
  • Vertical titanium tube /Model D evaporator
  • Multiple material of construction for economy (FRP/Ti/Alloy20/TFE/stainless steel)
  • Push button start/stop, PLC controlled




12 Semiconductor Production Plant HE












Biopharm reactor system modelSystem

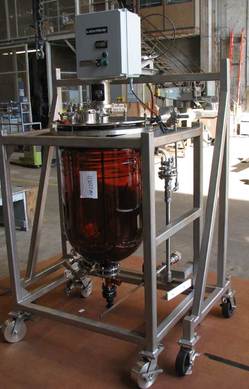

Biopharm Reactor System

Location

Eastern USA

Description of Equipment

QVF glass and stainless steel reactor system with:
  • 100 liter agitated and jacketed reactor
  • Coated glass for light-sensitive chemicals
  • Mobile vessel designed for autoclave treatment
Biopharm Reactor System

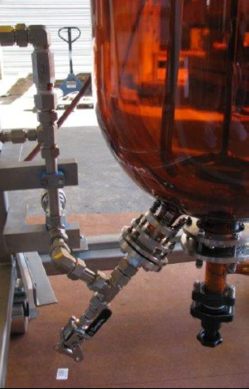

Biopharm reactor system valve


























API-reactor-system-profileSystem

High-potency API (HPAPI) development and manufacturing

Location

Midwest USA

Description of Equipment

2 De Dietrich glass-lined steel OptiMix reactors systems, 100 and 200 gallon capacity, with:

  • Shell and tube overhead condensers
  • Dual receivers and interconnecting piping
  • Full function Factory Acceptance Test
