Elevating Reactor Performance: The Impact of Wall-Mounted Baffles in Glass-Lined Reactors

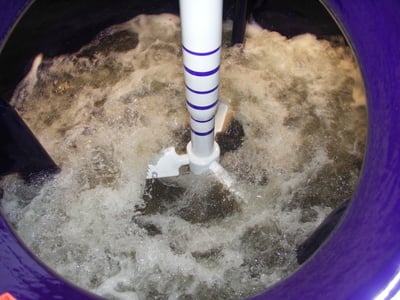

Mélange dans un réacteur OptiMixIn the sophisticated realm of chemical processing and pharmaceutical manufacturing, achieving optimal reactor performance is pivotal. Glass-lined reactors, revered for their corrosion resistance and cleanability, are a cornerstone in these industries. However, optimizing such reactors for peak performance requires more than just superior materials—it necessitates innovative design solutions. Among these, wall-mounted baffles stand out as a transformative option, significantly enhancing reactor efficiency. This blog post delves into how wall-mounted baffles can elevate the performance of glass-lined reactors, focusing on key performance indicators like heat transfer and mixing.


Understanding Wall-Mounted Baffles

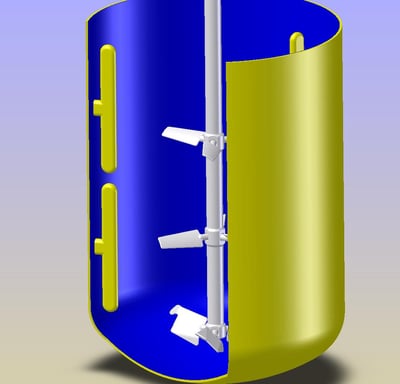

OptiMix_ReactorWall-mounted baffles are engineered attachments inside reactor vessels designed to direct flow and improve mixing. Unlike traditional baffles that extend from the reactor top head into the vessel, wall-mounted baffles are integrated into the reactor's design, creating minimal intrusion while maximizing efficiency. This design innovation is particularly beneficial in glass-lined reactors, where maintaining the integrity of the glass lining is paramount. The image on the right and above depicts DDPS's OptiMix wall-mounted baffle design.


Boosting Heat Transfer Efficiency

One of the primary benefits of incorporating wall-mounted baffles in glass-lined reactors is the significant enhancement in heat transfer capabilities. In chemical reactions, maintaining precise temperature control is crucial for reaction efficacy and safety. Wall-mounted baffles improve heat distribution throughout the reactor by:

  • Enhancing Turbulence: By disrupting the flow pattern, these baffles increase fluid turbulence. This disruption facilitates a more uniform temperature distribution, ensuring that the entire batch processes under optimal conditions.
  • Reducing Thermal Gradients: The improved mixing provided by wall-mounted baffles minimizes hot and cold spots within the reactor. This uniformity is crucial for reactions that are sensitive to temperature variations, directly impacting product quality.


Optimizing Mixing Efficiency

Mixing is another critical performance indicator in reactor operations. The goal is to achieve a homogeneous mixture, ensuring that all reactants are evenly distributed for a consistent reaction throughout the batch. Wall-mounted baffles contribute to mixing efficiency by:

  • Increasing Fluid Movement: These baffles guide the flow of liquids and solids, promoting a more comprehensive mixing action. This is particularly beneficial in suspensions or reactions involving solid reactants.
  • Reducing Dead Zones: Traditional reactors without adequate baffling can suffer from "dead zones" where minimal mixing occurs. Wall-mounted baffles help eliminate these areas by directing flow throughout the entire vessel.
  • Improving Mass Transfer: Enhanced mixing improves the rate of mass transfer between reactants, which is essential for reaction speed and completeness. Faster, more efficient reactions can lead to shorter batch times and higher throughput.


Implementing Wall-Mounted Baffles in Glass-Lined Reactors

Incorporating wall-mounted baffles into glass-lined reactors requires careful consideration of the reactor's design and the specific needs of the processes it performs. The benefits of such an integration include:

  • Preserving Glass Integrity: By avoiding extensive modifications to the reactor's internal structure, wall-mounted baffles maintain the integrity of the glass lining, ensuring its durability and corrosion resistance.
  • Customizable Solutions: Depending on the specific process requirements, the size, shape, and placement of baffles can be customized, offering flexibility to optimize reactor performance for various applications.


Wall-mounted baffles, like our Optimix design, represent a significant advancement in the design and operation of glass-lined reactors. By improving heat transfer and mixing efficiency, these baffles not only enhance the performance of reactors but also contribute to better product quality, reduced processing times, and increased operational safety. As industries continue to seek higher efficiency and productivity, the integration of wall-mounted baffles in glass-lined reactors is a testament to the importance of innovation in achieving these goals. For chemical processing and pharmaceutical manufacturing sectors, embracing such advancements is key to maintaining a competitive edge in today's fast-paced market.

Although there isn’t a single solution that provides optimal results for every application, for the majority of processes, OptiMix wall-mounted baffles carry out the mixing objectives most proficiently. Contact DDPS and we can help with an agitation simulation to look for an alternative option to your current mixing system to help optimize your reactor’s performance.   And the good news is you don’t need to get a new vessel to start experiencing the benefits for OptiMix. OptiMix baffles can be added to your existing vessel during reglass service. Reach out for more information.
