RoLab Filter: For Pilot Scale Filtration

*RoLab Filter Available for Rental*

RoLab Filter Product Description

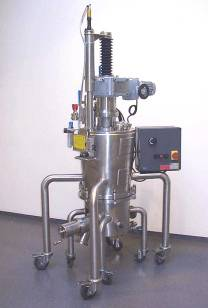

The RoLab Filter is an easy to operate and highly portable nutsche filter designed for the filtration and drying of small pharmaceutical and chemical batches. It is a manual solution for both laboratory and production environments that provides all the process functionality of the traditional Rosenmund filters at a fraction of the cost.

RoLab Filter Applications

Process functions include:

• Filling
• Filtration under pressure
• Washing of the filter cake
• Smoothing of the filter cake
• Convective drying (nitrogen blow through) of the filter cake
• Vacuum drying of the filter cake
• Heating and cooling
• Discharging of the filter cake

RoLab Filter Features

The RoLab is suitable for CIP and WIP and performs full filtration and drying processes according to cGMP and FDA standards. The vessel uses no hydraulics, therefore avoiding complicated installations and maintenance.  The lower bowl assembly can simply be wheeled out from underneath the upper part to allow for easy cleaning between batches.

With only five connections required for set up (460VAC, pressure/vacuum, nitrogen, slurry inlet, heating/cooling utilities), the RoLab’s basic installation is easy to perform.  Its compact design can be installed in very small areas.

RoLab Filter Advantages

• Multi-purpose application
• Pharmaceutical design
• Easy installation
• Cost-effective

RoLab Filter Specifications

• Filter areas from 0.03 to 0.6 m²
• Pressures from full vacuum to 90 psig (6 bar)

Options

• Available in (316L) stainless steel or Alloy C22
• Side discharge opening with PAD flange/valve with o-ring seals/valve with metal-metal seals
• Heated agitator > 0.2m²
• Sampling valve
• Vessel light
• Dust filter
• Double mechanical seal
• Electric motor
• Tachometer
• Process valves
