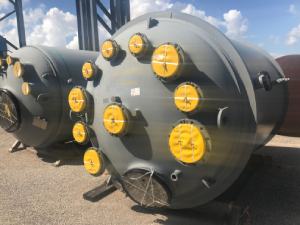

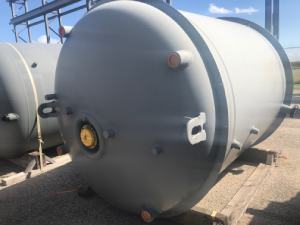

De Dietrich 2000 Gallon GL Reactor
This De Dietrich 2000 gallon GL reactor has been refurbished to like-new condition. Additional technical data can be found below. To inquire about purchasing this equipment, please fill out the form on the right. You can also reach a DDPS Refurbished Equipment Representative at 908-317-2585.
Vessel Design Pressure: 130 psig and F.V.
Jacket Design Pressure: 90 psig or 90 psig w/ int. F.V.
Design Temperature: 500ºF
Jacket Heating Area: 192 ft2
Working: 2,000 gal.
Total Volume: 2,190 gal.
Head Volume: 254 gal.
Per Inch Straight Side: 20 gal.
Bare Body (no accessories): 14,165 lbs.
Complete (with drive system): 16,050 lbs.
Add for Shipping: 1,500 lbs.
For dimensions and technical specifications view our GL-2000 reactor data sheet.
