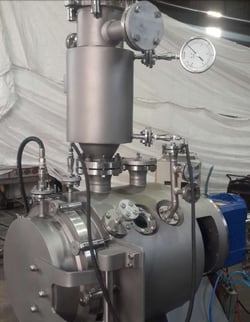

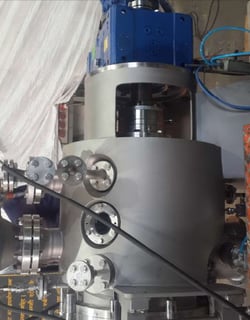

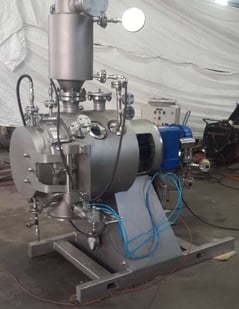

    This Rosenmund Rotary Vacuum Paddle Dryer was built as a rental unit that is now available to own.  It has never been used and has had no product contact.

    Additional technical data can be found below.  To inquire about purchasing this equipment, please fill out the form on the right.  You can also reach a DDPS Refurbished Equipment Representative at 908-317-2585.



    General Data

    Year of Manufacture: 2015

    Equipment Weight, Empty: 1500 kg



    Electrical Classification Area

    Class I, Division 1, Group C&D

    Paddle_dryer_2



    Design Data

    Pressure Rating: 15 psig/FV

    Temperature Rating: -20 to 150ºC

    Total Volume: 100 Liters

    Working Volume: 50 Liters

    Heat Transfer Area: 1.2m²

    Material of Construction: 316L Stainless



    Drive and Agitator Data

    Nominal Speed of Agitator: 4-12 RPM



    Materials of Construction

    All Parts in Contact with Product or Liquid: 1.4404 (316L) stainless steel



    Surface Treatment

    Paddle_dryer_3

    Vessel Interior: Electro-polished to Ra < 0.4 µm (Grit 240

    Vessel Exterior: Ra < 3.0 µm (bead blast finish)



    Nozzle Schedule

    Service Size Type
    Charge 3" 150#
    Discharge  3" Custom
    Dust Filter 4" 150#
    Vapor Outlet 3" 150#
    N2 Blowback ½" 150#
    Dust Filter CIP ½" 150#
    Dust Filter Jacket Inlet ½" 150#
    Dust Filter Jacket Outlet ½" 150#
    Vapor Temperature ½" Custom
    Vessel CIP (2x) ½" 150#
    Vessel Sight Glass 4"

    150#

    Sample Valve

    1"

    Custom

    Product Temperature

    ½"

    Custom
    Shell Jacket Inlet ½" 150#
    Shell Jacket Outlet ½" 150#
    Cover Jacket Inlet ½" 150#
    Cover Jacket Outlet ½" 150#
    Pressure Gauge 1" 150#
    Agitator Inlet ¾" NPT
    Outlet " NPT
    Paddle_dryer_1



    Availability: In stock, ready to ship
