Overcoming Challenges in Corrosive Evaporation and Condensation Processes with Pre-Engineered Systems
Managing evaporation and condensation processes presents unique challenges, especially when handling aggressive chemicals, high temperatures, and precise separation requirements. These systems play a crucial role in concentrating, purifying, and recovering valuable substances, making careful control of thermal dynamics and material compatibility essential.
One of the biggest concerns in these processes is corrosion. Conventional materials can degrade quickly when exposed to harsh applications, leading to frequent maintenance, unexpected downtime, and increased costs. Selecting specialized equipment that can withstand extreme conditions without compromising efficiency or reliability is vital.
Other key challenges include balancing cost, heat transfer efficiency, and lead time. While advanced materials and designs can enhance performance, they often come at a higher price or extended procurement times. Finding an optimized solution that meets operational needs without excessive trade-offs is critical for industries relying on these processes.
De Dietrich’s Solution: Pre-Engineered Glass-Lined Steel (GLS) Reactor Systems
To address these common industry challenges, De Dietrich offers what we refer to in our portfolio as the Spectrum Series—a standardized system designed to streamline selection, improve efficiency, and provide robust, corrosion-resistant solutions for evaporation, condensation, and distillation systems.
The Spectrum Series features glass-lined steel reactors combined with multiple overhead arrangements, available in materials ranging from QVF borosilicate glass and De Dietrich glass-lined steel to PTFE-lined steel and corrosion-resistant alloys. With reactor capacities ranging from 5 to 500 gallons, this series delivers flexibility while maintaining high performance.
Why Choose a Pre-Engineered System like the Spectrum Series?
When selecting reactor systems, efficiency, reliability, and performance are top priorities. De Dietrich’s Spectrum Series offers a pre-engineered solution that balances standardization with flexibility—simplifying the path from design to operation without compromising quality. At its core are De Dietrich’s OptiMix Glass-Lined Steel Reactors, supported by integrated peripheral systems and standardized distillation configurations. Together, they deliver a turnkey solution for a wide range of chemical processes.
Key Benefits of Pre-Engineered Reactor Systems
Streamlined Selection
Pre-engineered systems like the Spectrum Series eliminates the guesswork from system design. With predefined configurations tailored to common chemical processes, users benefit from:
- A faster, simplified selection process
- Selection of components with compatible materials of construction
- Reduced engineering time and procurement complexity
Whether you're sourcing a single reactor or a complete system, the standardized design ensures a cost-effective and efficient buying experience.
Improved Efficiency
By combining ASME-compliant components, optimized mixing technologies, and optional peripheral equipment, the Spectrum Series is engineered for high performance and operational ease:
- Thermal Efficiency: OptiMix systems enable superior heat transfer and fluid mixing over a wide range of liquid levels and fluid viscosity.
- Process Integration: Add-ons like vacuum systems, heat transfer modules, and automation tools enhance throughput and control.
- Scalable Solutions: Suitable for pilot to full-scale production, with flexible layout options and configurable overhead systems (more information on that below).
This thoughtful integration reduces installation time and maximizes process uptime.
Corrosion-Resistance
At the heart of every Spectrum Series system is De Dietrich’s industry-leading 3009 glass-lining, ensuring exceptional durability:
- Unmatched chemical resistance, protecting against harsh acids and solvents
- Longer equipment life, minimizing maintenance and replacement costs
- Material purity, supporting high-specification and regulated processes
Standardized Overheads
With borosilicate glass components and glass-lined steel construction, the Spectrum Series is built to withstand the most demanding chemical environments. The series offers several overhead configurations optimized for various process conditions and physical layout restraints. The four main layouts include:

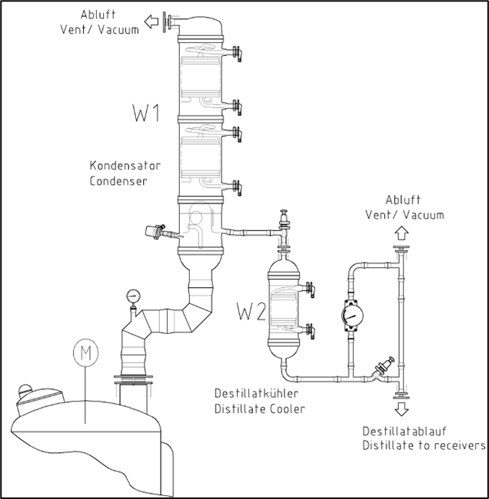

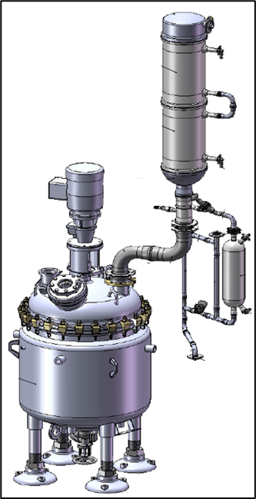

1. Vertical Condenser Reflux & Distillation: Common Supra Borosilicate Coil Condenser & Internal Reflux separator design.- Features:
- Compact footprint
- Minimal reflux temperature increase

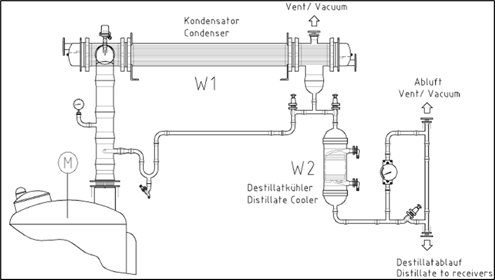

2. Horizontal Condenser Reflux & Distillation: Shell & Tube Condenser & External Reflux separator design.
- Features:
- Shorter Height Requirement vs. vertical condenser
- Smaller Condenser area requirements over vertical coil due to higher U values with Shell & Tube units, and other MOC (ie. Silicon Carbide)

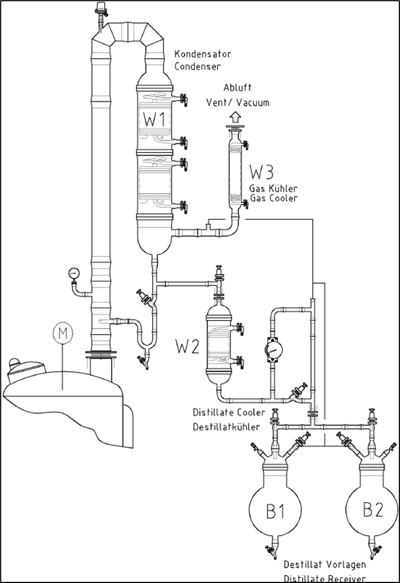

3. Vacuum Distillation: Coil or Shell & Tube Condenser
- Features:
- Distillate Sub-cooling

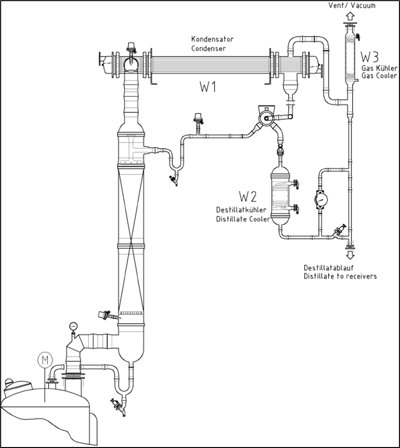

4. Batch Rectification System: Shell & Tube Condenser with External Reflux separator design with inclusion of Packed Column upstream.
- Features:
- Improved separation via rectification
- DuraPack TM Structured Supra Borosilicate glass packing insures high efficiency and low pressure drops.
- All Glass systems provide visual monitoring of column performance,
- Columns can be customize to incorporation many packing designs and Materials of Construction for specific process requirements.
Applications of the Spectrum Series
The Spectrum Reactor Series is engineered to meet the diverse needs of industries such as:
- Pharmaceuticals / APIs - Purity
- Specialty / Fine Chemicals - Corrosion resistance
- General Chemistry / Research and Development - Versatility and Scalability
Whether you need a complete system or individual components, the Spectrum Series offers a modular approach to meet diverse operational needs and budgets.
Final Thoughts
The Spectrum Series simplifies the design and implementation of GLS reactor systems by offering standardized configurations that address a wide range of batch reactor processes. If you need a jacketed, agitated reactor with overheads (with or without reflux and receiving vessels), this series is crafted to provide robust, reliable solutions in customizable materials of construction to maximize performance across process, pressure, temperature, corrosion resistance, heat transfer efficiency, and more.
Ready to elevate your distillation process? Contact our experts today to explore how the Spectrum Series can optimize your operations.
