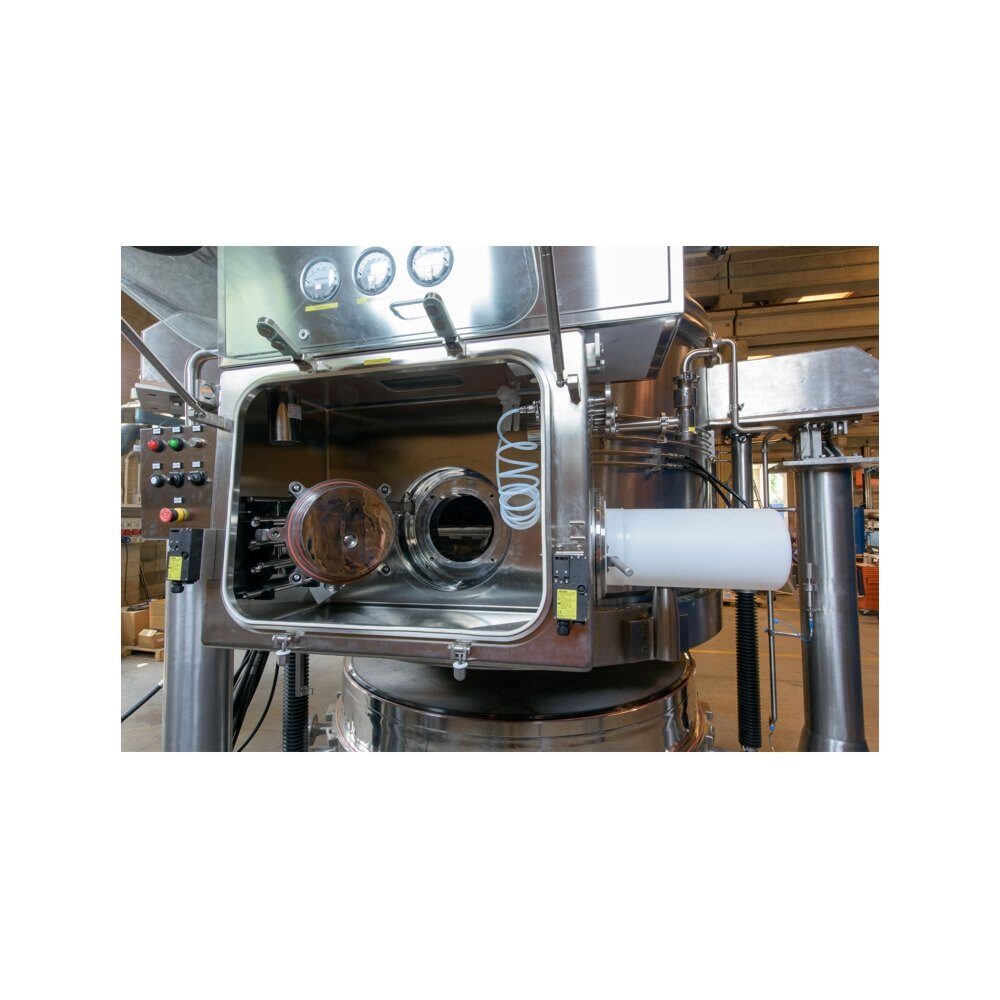

Filter Dryer with Containment System

Containment systems (glove boxes) are designed to allow contamination free sampling, product discharge, heel removal and product pack-off into suitable containers
Containment systems are available as passive, active, single chamber, two chamber and multiple chamber designs, all in compliance with cGMP and FDA guidelines
Active isolator units are equipped with air handling systems and HEPA inlet and exhaust filters for containment levels down to 10 ng/m³ TWA
The isolator design permits sampling, product discharge, pack-off, heel removal and filter cloth disposal in a single unit
Sample and small items transfer using optional RTP‘s (Rapid Transfer Ports/alpha-beta ports), split butterfly valves, bag-in/ bag-out port

Technical Data

Product wetted materials	Stainless steels, Nickel based alloys such as Hastelloy C 22 or Alloy 59, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	EU-Type Examination Certificate INERIS the 2014/34/EU Directive, or with electrical components UL approved for operation in a Class 1, Division 1 or 2, Groups C&D environment
Controls	Control cabinet with PLC, HMI with touch screen, MCC, interface for DCS
Guidelines	Calculation, design and manufacture in accordance with the Pressure Equipment Directive (PED) 2014/68/EU and /or the ASME pressure vessel code, Section VIII, with U-Stamp
Filter area	0.13 to 2 m²
Slurry volume	55 – 2,000 liters
Design temperature	-10 to 150°C (14 to 302°F) or per requirements
Design pressure	-1 to +4 barg (FV to 60 psig) or per requirements
Heated areas	All product wetted components, including agitator
Accessories	Dust filter with automatic back cleaning, sampling valve, CIP system, sight glass with vessel light, vacuum system with condenser, heating and cooling unit etc.
