Pharmaceutical System Profiles

3 API Pilot-Production Plant

System

API Pilot/ Production Plant

Location

Midwest USA

Description of Equipment

Two De Dietrich glass-lined steel reactors systems, 200 and 50 gallon capacity with:
  • QVF glass overheads and condensers
  • QVF glass columns with Dean/Stark trap
3 API Pilot-Production Plant rxtr controls











4 API Production Facility

System

API Production Facility

Location

Eastern USA

Description of Equipment

Two 100 gallon De Dietrich glass-lined steel OptiMix reactors systems with:
  • 4 API Production Facility Pre installationQVF glass piping and condensers
  • Custom layout for low ceiling installation










5 API Kilo Plant

System

API Kilo Plant

Location

Switzerland

Description of Equipment

5 API Kilo Plant Reactor close upTwo QVF pharma reactor systems, 63 and 100 liter capacity with:
  • QVF glass overheads
  • De Dietrich VERI glass-lined steel reactor body
  • Portable mix/transfer vessels, 30 liter
  • GMP/ WPR glass system



















6 API Kilo-Pilot Plant

System

API Kilo/Pilot Plant

Location

Eastern USA

Description of Equipment

Two QVF pharma reactor systems, 60 and 100 liter capacity with:
  • 6 API Kilo-Pilot Plant reactorBudzar dual loop HTMs
  • QVF glass overheads / SiC tube condensers
  • De Dietrich VERI glass-lined steel reactor body with OptiMix baffles

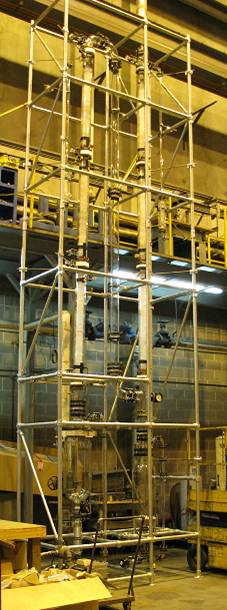

10 Pharmaceutical Production Plant

System

Pharmaceutical Production Plant

Location

Gulf Coast USA

Description of Equipment

QVF DN100 x 6m tall distillation system with:
  • DuraPack┬« structured glass packing for visibility of fouling and purity/corrosion resistance
  • QVF glass level tanks, piping, and coolers

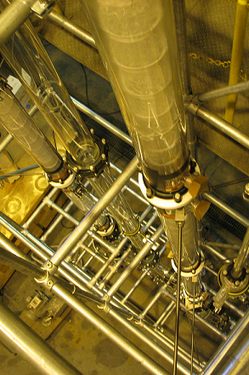

moz-screenshot-177
























10 Pharmaceutical Production Plant DuraPack

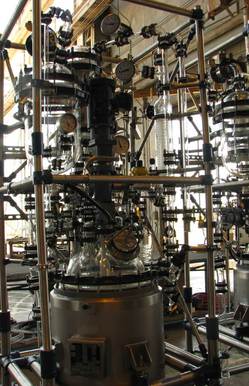

API kilo plantSystem

API Kilo Plant

Location

Southeast USA

Description of Equipment

Dual 40 liter kilo plant with:
  • De Dietrich glass-lined steel VERI reactors
  • QVF glass overheads, intermediate vessels
  • Mobile charging/transfer system
  • Budzar thermal oil systems
  • Vacuum system
  • PLC controlled




API kilo plant model












API kilo plant temperature control modules












API kilo plant vacuum system

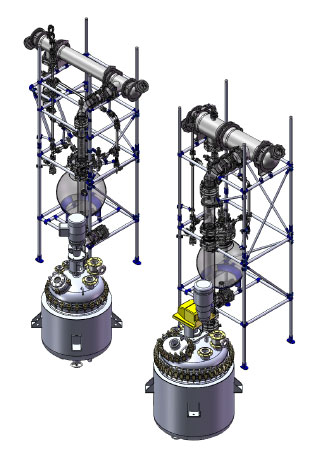

API-reactor-system-profileSystem

High-potency API (HPAPI) development and manufacturing

Location

Midwest USA

Description of Equipment

2 De Dietrich glass-lined steel OptiMix reactors systems, 100 and 200 gallon capacity, with:

  • Shell and tube overhead condensers
  • Dual receivers and interconnecting piping
  • Full function Factory Acceptance Test
