VERI Reactors
VERI Product Description

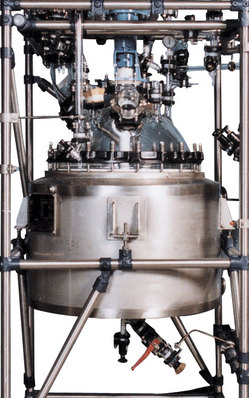

The VERI reactor series is a glass-lined steel reactor body with a solid glass cover. The combination glass/glass-lined design was developed from the pharmaceutical industry's demand for maximum purity and optimized heat and mass transfer combined with suitability for GMP use. VERI Features
The VERI reactor is specially designed for the two process stages of reaction and distillation. The reaction stage operates under total reflux, allowing the solvent to be distilled off as effectively as possible in the concentration phase. The materials of construction used are borosilicate glass 3.3, 3009 glass-lined steel and PTFE.VERI Advantages
The VERI reactor is designed for a compact layout with reduced headroom requirements, suiting the limited availability of space in the majority of laboratories. The modular construction can be expanded to handle various special functions. The combined glass/glass-lined construction offers the strength of glass-lined steel with the visibility benefit of borosilicate glass.VERI Specifications
- Volumes from 16 to 100 liters
- Pressures from full vacuum to 9 psig (0.6 bar)
- Temperatures from -76°F (-60°C) to 400°F (200°C)
Options
- Hydraulic lifting device for the reaction vessel
- Phase separator
- Electronic speed indicator
- High pressure version
- Coated glass components
- Weighting cells for reactor, feed and distillate vessel
- Double-acting mechanical seal
- Anchor, turbine and propeller type stirrers
- Process control engineering
- Other accessories and instrumentation
VERI Pharma Reactor System Profiles
System
API Kilo PlantLocation
SwitzerlandDescription of Equipment
Two QVF pharma reactor systems, 63 and 100 liter capacity with:
- QVF glass overheads
- De Dietrich VERI glass-lined steel reactor body
- Portable mix/transfer vessels, 30 liter
- GMP/ WPR glass system
System
API Kilo/Pilot PlantLocation
Eastern USADescription of Equipment
Two QVF pharma reactor systems, 60 and 100 liter capacity with:
Budzar dual loop HTMs- QVF glass overheads / SiC tube condensers
- De Dietrich VERI glass-lined steel reactor body with OptiMix baffles
Budzar dual loop HTMs
System
API Kilo Plant
SystemLocation
Southeast USADescription of Equipment
Dual 40 liter kilo plant with:- De Dietrich glass-lined steel VERI reactors
- QVF glass overheads, intermediate vessels
- Mobile charging/transfer system
- Budzar thermal oil systems
- Vacuum system
- PLC controlled
